Specifications
Effective width: 1150mm,950mm
Thickness: 50mm、75mm、100mm、125mm、150mm、175mm、200mm or customized
Length: It can be made as user’s requirement(normal≤6000mm)

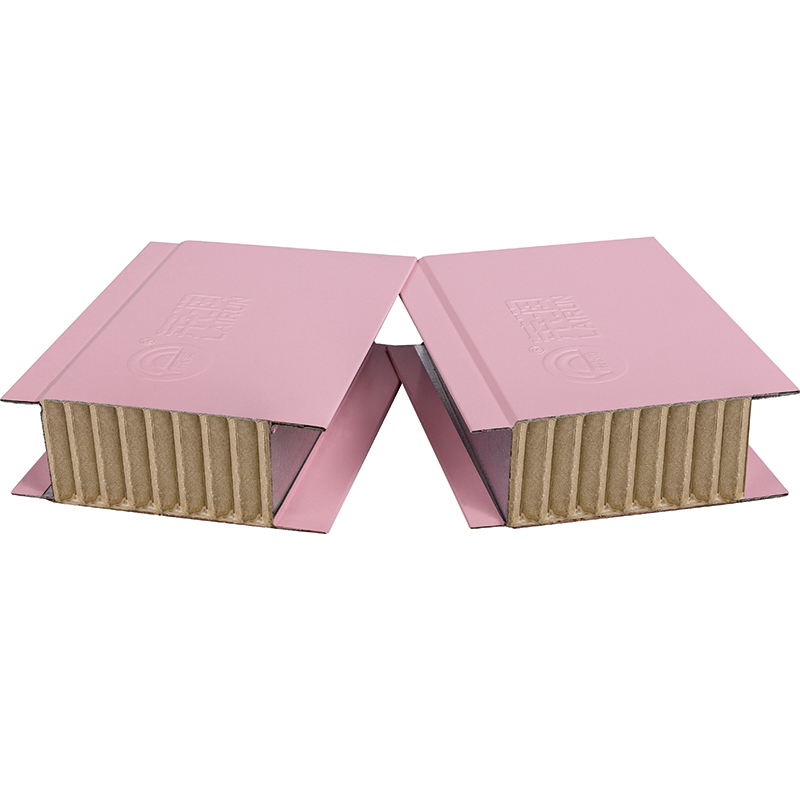

Applicable core material: Paper honeycomb board is made of kraft paper processed into a regular hexagonal structure, according to the principle of natural honeycomb structure. It is made by bonding corrugated paper into countless hollow three-dimensional regular hexagons to form an integral load-bearing member – paper core, and bonding panels on both sides to form a new type of sandwich structure environmentally friendly energy-saving material.
Honeycomb hole size: 12mmx12mm,or 8mmx8mm, or 5mmx5mm
Surface metal : can be selected from galvanized steel sheets, stainless steel sheets, aluminum alloy sheets, aluminum-magnesium-manganese sheets, or inorganic pre-coated boards. And the surface treatment options include advanced polyester resin, fluorocarbon resin, high weather-resistant resin, and other baked enamel finishes.
Product color: Grey,ivory white,navy,blue dream,but any custom color according to customer’s requirements.
Mounting structure: Tongue and groove jointing
Product performance: Rust,scrub resistance,acid and alkali resistance,fire prevention,sound insulation, thermal insulation and other performance.
Related Cases
-
01 Southern Medical University Seventh Affiliated Hospital - Heshuo Campus Upgrade and RenovationProject Location Lishui,Guangdong,China Products Used Magnesium Oxide Rock Wool Handcrafted Sandwich Panels,Hollow Core Magnesium Oxide Handcrafted Sandwich Panels Project Area 20,000 m² Industry Healthcare
-
02 Guangzhou Medical University New Campus Phase IIAcademic Exchange Center, Talent Dormitory, Animal Center, Technology Building, and Public Building Supporting Facilities General Contracting Project Project Location Guangzhou, Guangdong, China Products Used Magnesium Oxide Rock Wool Sandwich Panels, Mechanically Processed Panels Project Area 40,000 m² Industry Laboratories
-
03 Jiangmen Maternal and Child Health HospitalProject Location: Jiangmen, Guangdong, China Project Area: 40,000 m² Project Product: Hollow Magnesium Oxide Sandwich Panels Industry: Healthcare
